1, matching 150 hp domestic famous country three engines, emissions upgrades, low fuel consumption, torque reserve, power strong.

2, the use of double-acting to strengthen the enhanced clutch, 16 +8 helical gear reinforced chassis, reinforced front axle, flat floor, side hanging file, optional crawl file, stalls match reasonable.

3, the standard strong and strong pressure and external cylinder booster, lifting force, to enhance the speed, higher reliability.

4, power output 760/1000 r / min, 760/850 r / min, optional 540/1000 r / min, to meet the agricultural machinery speed requirements.

5, hydraulic independent oil, full hydraulic independent steering, turning radius is small.

6, equipped with cab.

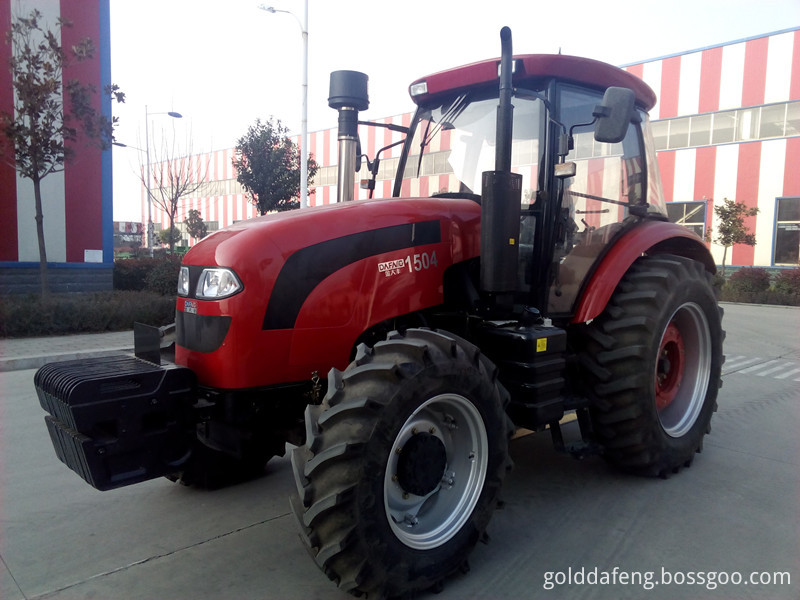

 Wheeled tractor 1504



SPECIFICATIONS FOR FOUR WHEELED DRIVE TRACTORS



Engine

Model



WP6G150E330A

Type

/

vertical, water-cooled, four-stroke, direct injection

Rated Power

KW

110



The number of Cylinder

/

6



Main performance parameters

Steering Type



hydraulic steering

Clutch



dry,single disc, independent dual-stage

Walk System(Front Tire/Rear Tire)

/

14.9-26/18.4-38



Drive type

/

4×4

Wheelbase

mm

2640

Wheel Track(Front/Rear)

mm

1727.1755.1827.1855.1967.1975.2067.2075/1620~2420

Min. Operation Weight

KG

5375

Gears

/

16F+8R

PTO Axle Power

KW

94

Max. Tractive Effort

KN

32



Overall Dimension

L

mm

5200

M

mm

2430

H



3010



Working equipment

Three-Point Suspension

/

Category â…¡

Hydraulic pumb type

/

gear pumb

hydraulic output valva

/

3ways



PTO axle splines number

/

8

PTO Speed

R/Min

760/850(540/1000.540/760 is optional)

Max. Lifting Capacity

KN

26.6




After-sales service



1.Warranty

Gold Dafeng grants our clients twelve-month-period warranty for any machine purchased from us which could reach the certain target quantity. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge, at our discretion.



2.Spare parts

Gold Dafeng is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast delivered and services, wherever you are, please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.



3.Installation&Maintenance

Gold Dafeng is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the normal operation of handling machinery immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.



4.Training



Gold Dafeng  offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client`s site.



5.technical advice

Gold Dafeng can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advice, your machine service life can be significantly prolonged and sustained with high capacity.




150hp Wheeled Tractor

150Hp Wheeled Tractor,150hp Farming Wheeled Tractors,Agricultural Equipment Wheeled Tractor,150Hp Wheeled Farm Tractor
